Rational Combi Service 10 & 11: Troubleshooting SC Pumps & CDS Sensors

Reading Time: 5 Minutes

In a high-volume kitchen, the Rational Combi oven is the heartbeat of the line. When the display throws a Service 10 or Service 11 error, the oven often limits functionality or shuts down entirely to prevent internal damage. These codes are almost always related to the cleaning and steam generation systems — specifically the SC (Steam Control) pump and the CDS (Clean Jet/Dosing) sensors.

For a technician, these calls are a race against the dinner rush. Here is how to diagnose the root cause and get the steam back on.

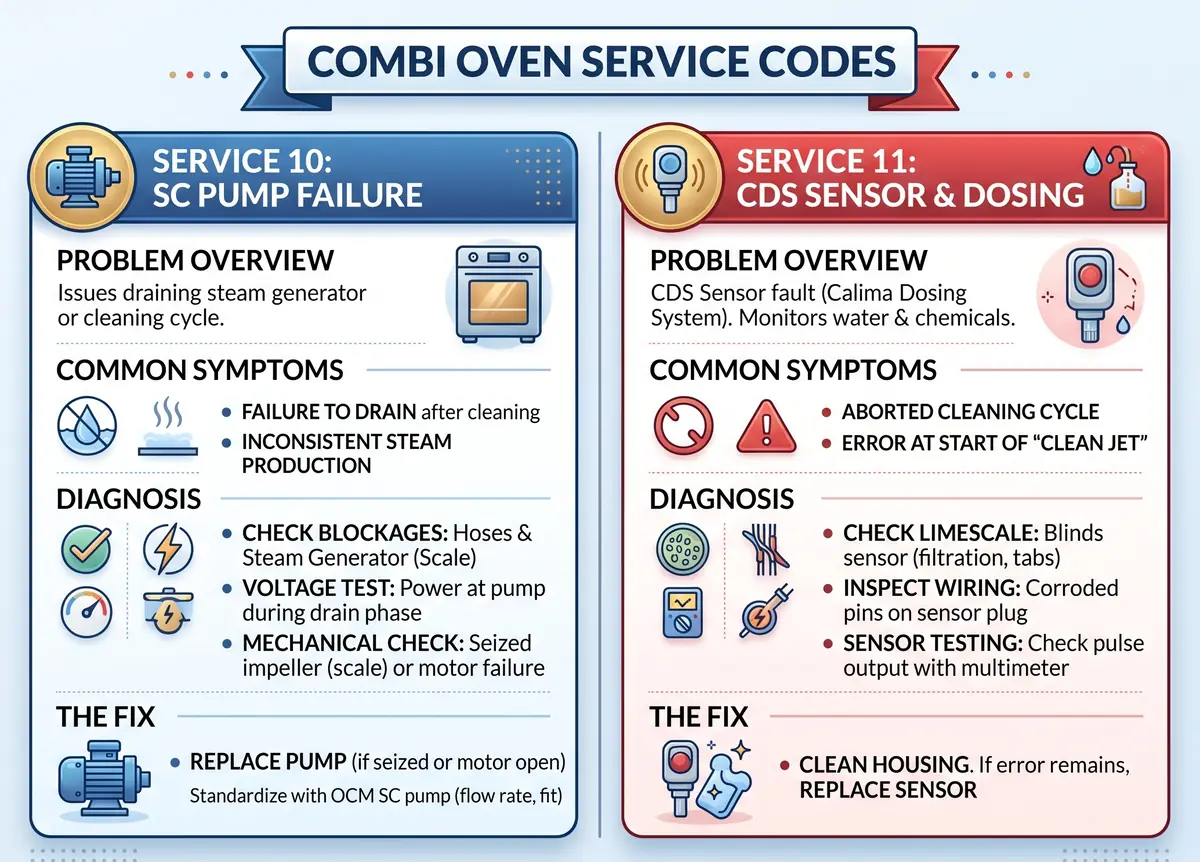

Service 10: The SC Pump Failure

Service 10 typically indicates that the SC pump, which is responsible for draining the steam generator or handling the cleaning cycle, is not functioning correctly.

• The Symptom: The oven fails to drain after a cleaning cycle, or steam production is inconsistent.
• The Diagnosis:
  1. Check for Blockages: Before pulling the pump, check the drain hoses and the steam generator for heavy scale buildup. A "Service 10" can be triggered simply because the water can’t move fast enough.
  2. Voltage Test: Check for power at the pump motor during the drain phase of a cycle.
  3. Mechanical Check: If the pump has power but isn't turning, the impeller is likely seized by scale or the motor windings have failed.
• The Fix: If the pump is seized or the motor is open, it’s time for a replacement. Standardizing with an OCM SC pump ensures the exact flow rate and fit as the factory original without the OEM brand markup.

Service 11: CDS Sensor & Dosing Issues

Service 11 is often triggered by the CDS (Calima Dosing System) sensor. This sensor monitors the flow of water and cleaning chemicals into the system. If it doesn’t detect the right flow at the right time, it kills the cycle.

• The Symptom: The oven aborts the cleaning cycle mid-way, or "Service 11" appears immediately after starting a "Clean Jet" sequence.
• The Diagnosis:
  1. The "Limescale Factor": The CDS sensor is highly sensitive to mineral deposits. If your customer hasn't been diligent with their blue and red tabs (or their water filtration has failed), scale will blind the sensor.
  2. Wiring Inspection: Check the plug connections at the sensor. The harsh, humid environment inside a Combi cabinet can lead to corrosion on the pins.
  3. Sensor Testing: Use your multimeter to check the pulse output of the flow sensor while water is entering the unit. No pulse means a dead sensor.
• The Fix: Clean the sensor housing first. If the error persists, replace the sensor.

The "Combi Crunch": Sourcing OCM vs. OEM

Rational parts are notoriously expensive and, due to their specialized nature, frequently face OEM backorders. For a service company, telling a chef their oven will be down for two weeks while a part ships from Germany is a recipe for a lost client.

The OCM Advantage: By sourcing AllPoints OCM pumps, sensors, and heating elements, you are getting components manufactured to the exact same technical specifications as the Rational-branded versions.

• Availability: We maintain deep stock on Combi-specific OCM components to bypass OEM supply chain delays.
• Margin: You save an average of 15% on the part cost, allowing you to be more competitive on your total repair quote while keeping your margins healthy.

Tech Tip:

Don't guess on the part number. Rational has multiple generations (SCC, CMP, iCombi). Use the mobile-optimized version of AllPointsFPS.com to search by the oven’s serial number. You can instantly pull up the digital schematic, verify the exact OCM part you need, and check live inventory before you even leave the kitchen floor.
