Hoshizaki Beep Codes: What "3 Beeps" Mean for Your Freeze Cycle

Reading Time: 4 Minutes

When you walk into a kitchen and hear a Hoshizaki ice machine sounding off with a continuous 3-beep alarm, the control board is telling you one specific thing: Long Freeze Cycle.

This code triggers when the machine's freeze cycle has exceeded its maximum backup timer (typically 60 minutes) for two consecutive cycles without transitioning into harvest mode. The yellow D14 LED on the board will also be illuminated.

Before you hook up your gauges and assume there is a refrigerant leak, stop. A 3-beep error is almost always a mechanical or water issue. Here is the step-by-step diagnostic path to find the actual root cause.

Step 1: The Float Switch Assembly

In a Hoshizaki cuber, the float switch is the component responsible for telling the board that the freeze cycle is finished and it is time to harvest. As ice forms on the evaporator plates, the water level in the sump drops. Once the float drops low enough, it opens the circuit and initiates the harvest.

• The Issue: If the float is caked in mineral scale or biofilm (slime), it can mechanically stick in the "up" position. The board thinks there is still plenty of water in the sump, so it just keeps freezing until the 60-minute safety timer shuts the whole machine down.
• The Test: Pull the float switch out of the housing. Check it for heavy scale buildup. If it looks clean, use a multimeter to check the continuity of the switch while manually moving the float up and down.
• The Fix: Thoroughly descale and sanitize the machine. If the internal contacts of the float have failed, the switch must be replaced.

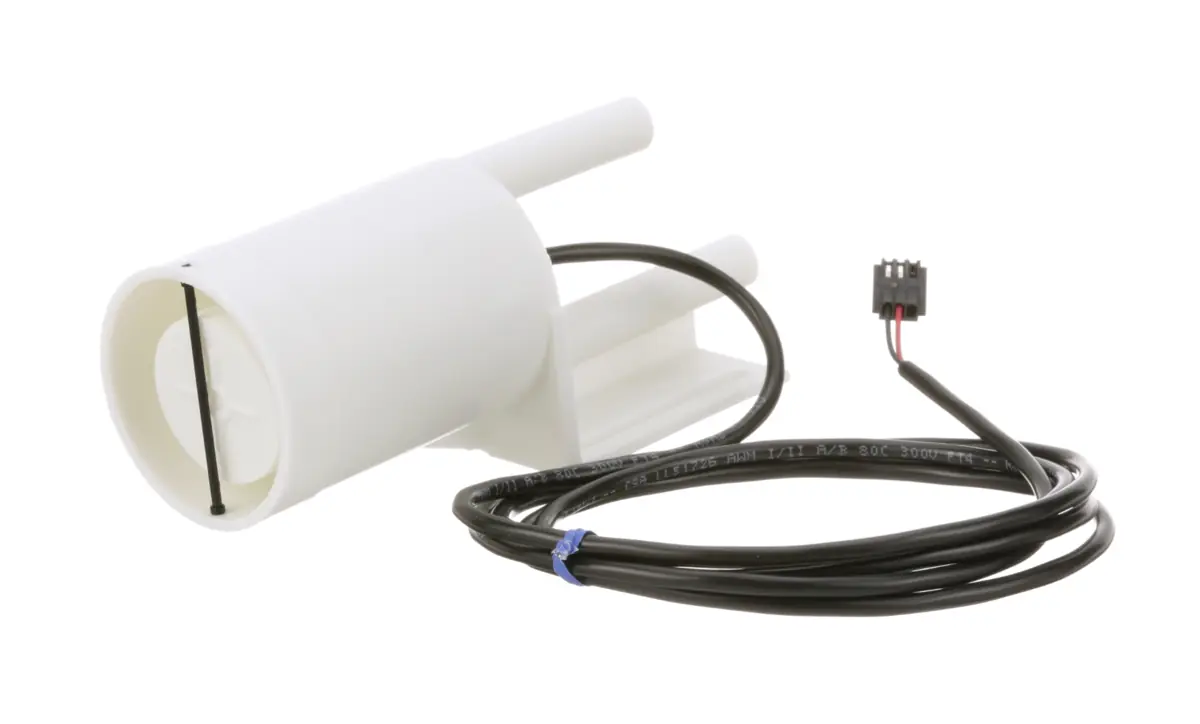

Hoshizaki - Switch - Float Assem

Hoshizaki - Inlet Water Valve

Step 2: The Inlet Water Valve

If the float switch is clean and functioning perfectly, the next most likely culprit is the water inlet valve.

• The Issue: During the freeze cycle, the inlet valve must be completely closed. If the diaphragm inside the valve is torn or blocked by a piece of sediment, it will "weep." This allows a constant trickle of relatively warm incoming water to enter the sump, constantly fighting the evaporator and preventing the water level from dropping enough to trigger the float.
• The Test: Once the machine is deep into its freeze cycle, pull the water tube going into the reservoir. If water is still dripping into the sump, your valve has failed.
• The Fix: Replace the water inlet valve and check the condition of the incoming water filter to prevent it from happening again.

Step 3: The Hot Gas Valve (Refrigeration Side)

If you have ruled out the float switch and the water valve, you can now start looking at the refrigeration circuit.

• The Issue: Hoshizaki machines use a hot gas valve to warm the evaporator plates during the harvest cycle. If this valve is leaking slightly during the freeze cycle, it will continuously dump hot discharge gas directly into the evaporator. The compressor will run, but the plates will never get cold enough to form ice within the 60-minute limit.
• The Test: While the machine is in the middle of a freeze cycle, carefully feel the hot gas line after the valve. It should be cool. If it is hot to the touch, the valve is bleeding.
• The Fix: Recover the refrigerant, braze in a new hot gas valve, replace the liquid line drier, and weigh in a fresh charge.

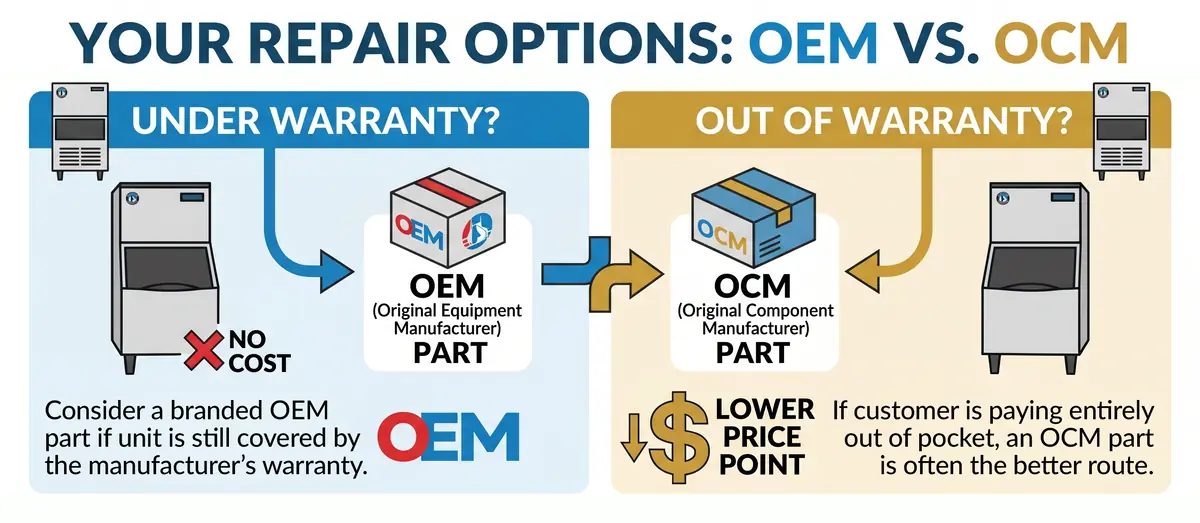

Your Repair Options: OEM vs. OCM

When it comes time to replace the faulty float switch, water valve, or a hot gas valve, the age and warranty status of the machine should dictate your sourcing.

• Under Warranty? If the Hoshizaki unit is still covered by the manufacturer's warranty, you could consider a branded OEM (Original Equipment Manufacturer) part.
• Out of Warranty? For older units where the customer is paying entirely out of pocket, an Original Component Manufacturer (OCM) part is often the better route. You get a component built to the exact factory specifications, but at a lower price point that helps protect the customer's budget and your repair margin.

Because DFS brands like AllPoints stock both the OEM Hoshizaki parts and their OCM equivalents, you can make the right call based on what the specific job requires.
