Frymaster E-25 Recovery Faults: Why Your Fryer is Failing to Heat
Jun 24th 2026
Reading Time: 4 Minutes
At-A-Glance Summary
A Frymaster E-25 error code indicates a Recovery Fault, meaning the fryer’s oil temperature is rising too slowly (less than 1°F per second) during the initial heat cycle. This safety code prevents dry-firing and fire hazards. It is primarily caused by failed contactors, open heating elements, or a faulty high-limit switch. Isolating the component requires systematic voltage and resistance testing across the heating circuit.
What Does a Frymaster E-25 Error Code Mean?
A Frymaster E-25 error code means the fryer control board has detected a heating recovery failure. When an electric fryer is turned on, the computer monitors how fast the oil temperature rises. If the temperature fails to increase at the factory-programmed rate (typically failing to rise by at least 1°F within a specific multi-second window), the control board trips the E-25 safety lockout and cuts power to the heating circuit to prevent equipment damage.
The good news? An E-25 fault does not mean a fryer is completely dead. It just means the system is only getting partial power or the heat is not transferring to the oil efficiently.
The 3 Most Common Causes of an E-25 Recovery Fault
When troubleshooting an electric Frymaster unit displaying an E-25 code, technicians should isolate these three high-failure components:

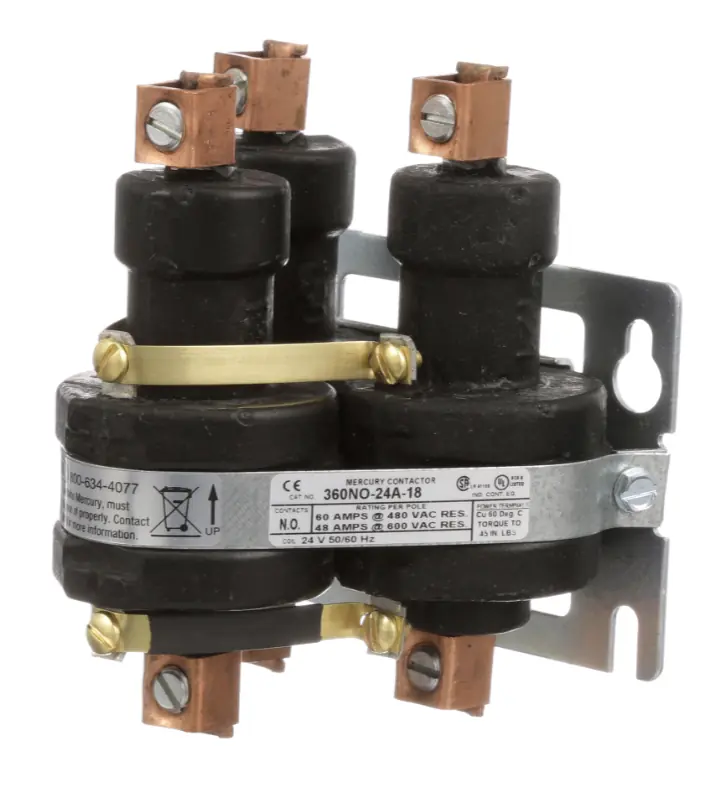

1. Failed or Pitted Contactors
Electric fryers rely on heavy-duty latching and switching contactors to send high-voltage power to the elements. Over time, the internal contacts arc, pit, and develop carbon buildup. If one pole of a contactor fails to close, the heating element will only receive partial voltage (e.g., running on two phases instead of three), cutting the fryer's heating capacity in half and triggering the recovery timeout.
2. Open or Burnt Heating Elements
Commercial fryer elements operate under extreme thermal stress. If sediment or old fry batter accumulates on the bottom of the vat, it acts as an insulator. This traps heat inside the element casing rather than transferring it to the oil, causing the internal resistance wire to burn out and go "open loop."

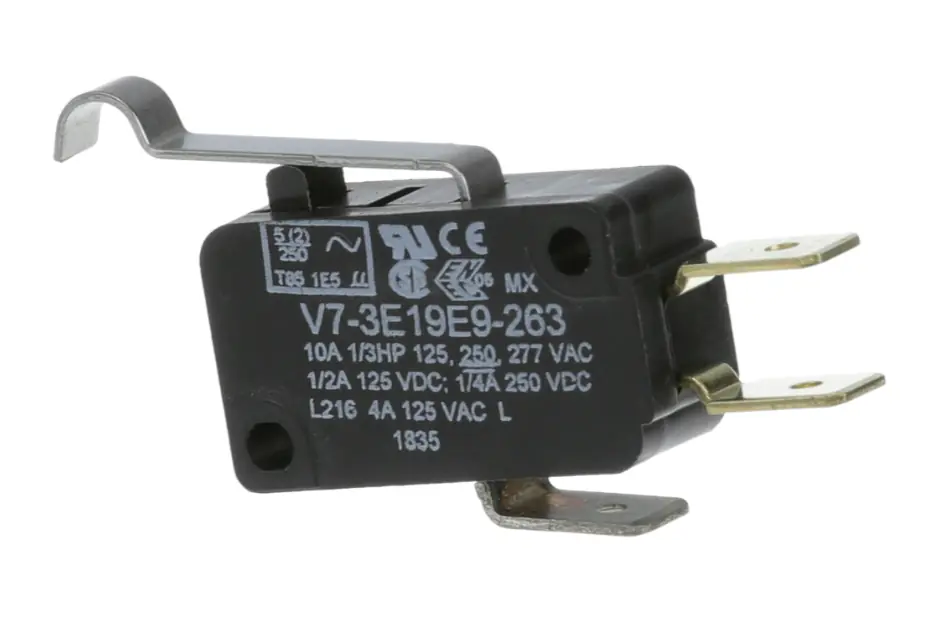

3. A Tripped or Faulty High-Limit Switch
The high-limit thermostat is a mechanical safety switch designed to cut power if the oil reaches an unsafe temperature (usually around 425°F to 450°F). However, if the high-limit switch becomes weak, out of calibration, or suffers loose wiring connections, it can create intermittent resistance in the control circuit, dropping the heater signal and throwing an E-25 code.
Diagnostic Checklist for Technicians
To accurately isolate the root cause of an E-25 fault on-site, follow this structured diagnostic path:
| Diagnostic Step | Action Required | Expected Multimeter Reading |
|---|---|---|
| 1. Voltage Test | Measure voltage across the load side of the heating contactors while the fryer calls for heat. | Must match the data plate voltage (e.g., 208V, 240V, or 480V) across all phases. |
| 2. Resistance Test | Disconnect power and check the resistance (Ω) of each heating element loop. | Low, balanced resistance (typically between 10 to 30 ohms depending on kW rating). An "OL" reading indicates a burnt element. |
| 3. High-Limit Check | Check continuity across the high-limit switch terminals while the fryer is cool. | Must show zero resistance (closed circuit). If it reads open while cool, replace the switch. |
Frequently Asked Questions (FAQs)
Can a dirty fry pot cause an E-25 recovery fault?
Yes. Heavy sediment, carbonized grease, and crumb buildup on the surface of the heating elements act as a thermal barrier. This prevents the elements from efficiently heating the oil, slowing down the temperature rise enough to trigger the E-25 recovery timer. Regular daily cleaning and boiling out of the fry pot prevent this issue.
Is it safe to clear the E-25 code and keep running the fryer?
No. An E-25 code is a critical safety lockout. While cycling the power switch may temporarily clear the code, running a fryer with a partial phase loss or a failing high-limit switch can cause permanent damage to the remaining electrical components or create a serious fire hazard. The root mechanical or electrical failure must be repaired first.
Should I use OEM or OCM parts to fix a Frymaster E-25 error?
The choice depends on the fryer's warranty status. For units under manufacturer warranty, you can use branded OEM parts to maintain coverage. For out-of-warranty equipment, choosing Original Component Manufacturer (OCM) parts. OCM parts are made in the same factories as OEM parts and give you identical performance for an average of 15% less. They also come with an industry-leading 180-day warranty.
