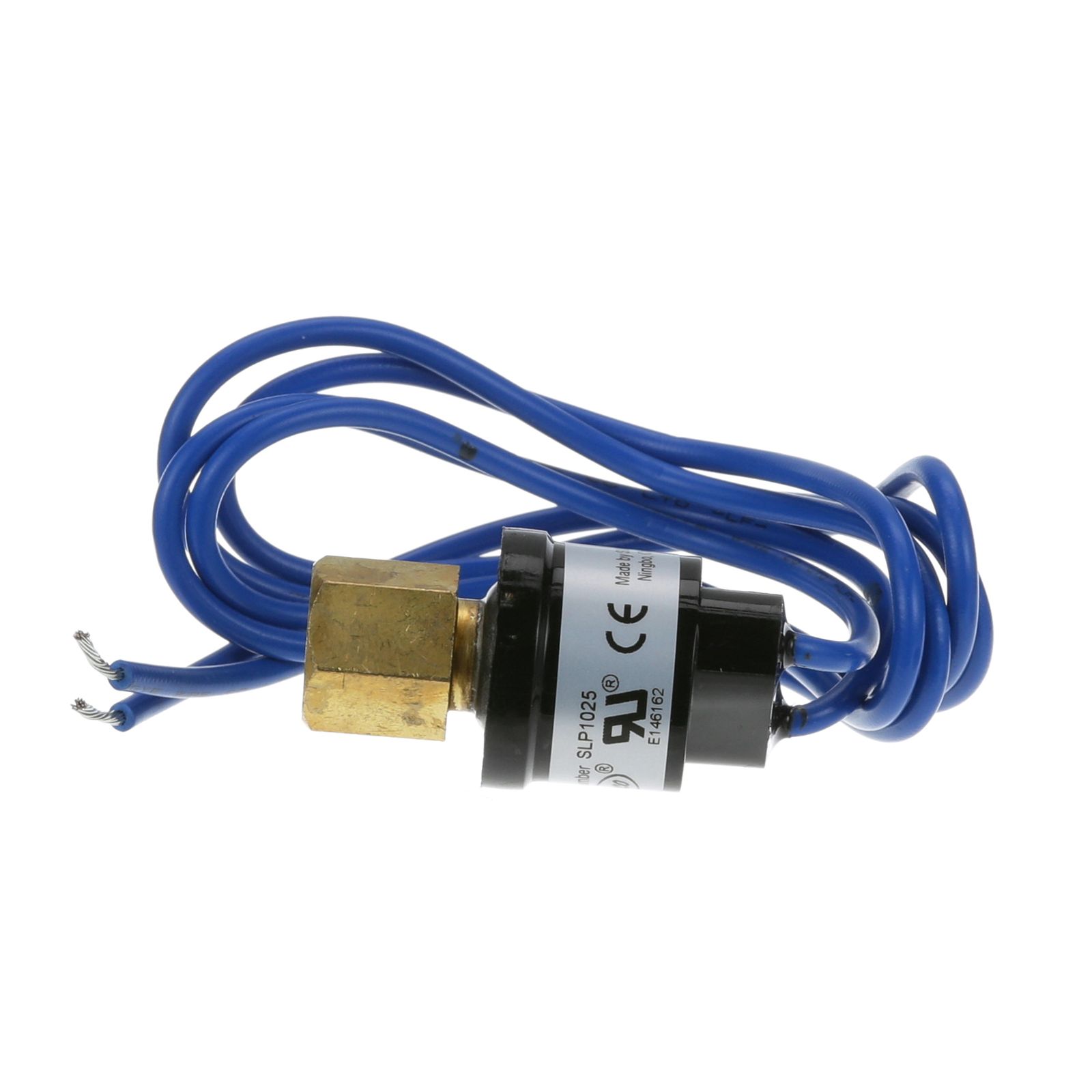

10 - 25 PSI Low Pressure Switch
421814
AllPoints #:
421814
List Price:
$34.78
/Each
Specifications
- Ship Weight : 0.12 LBS.
- Height (in) : 2
- Length (in) : 5.25
- Psi : 10 - 25
- Voltage (V AC) : 24/120/240
- Width (in) : 3
- AllPoints #: 421814
Description
Automatic Reset High, Low & Condenser Fan Cycling Pressure
Switches.
LOW PRESSURE OPEN 10 PSI, CLOSE 25 PSI, +/- 15 PSI
High pressure SPST open on pressure rise
Low pressure SPST open on pressure fall
Condenser fan cycling SPST open on pressure fall.
1/4" female SAE connection
Snap acting SS hermetically sealed sensor (SHP, SLP & SFC)
Small size and light weight for direct mounting
Excellent set point repeatability/stability
Pressure range: 0 to 650 PSI, Burst pressure: 5000 PSI
Life @ rated load: 100,000 cycles
Rated voltage: 50/60 Hz., 24/120/240 V (6 RLA, 36 LRA)
Temperatures: ambient 20°F to 176°F (-30°C to 80°C)
Fluid 60°F to 250°F (-50°C to 120°C)
