Sourcing for R-290: Identifying Compliant OCM Cold-Side Parts

Reading Time: 4 Minutes

As of early 2026, the transition to R-290 (propane) in commercial refrigeration is no longer a "future consideration," but an operational standard. For purchasing managers, this shift has created a significant sourcing challenge. You cannot simply pull a universal Part A and swap it into a System B if that system is running on an A3 flammable refrigerant.

Compliance in the R-290 era is about ignition prevention. When sourcing cold-side components, you need to identify parts that meet the updated UL 60335-2-89 standards.

Here is how to identify compliant Original Component Manufacturer (OCM) parts that maintain safety standards while protecting your margins.

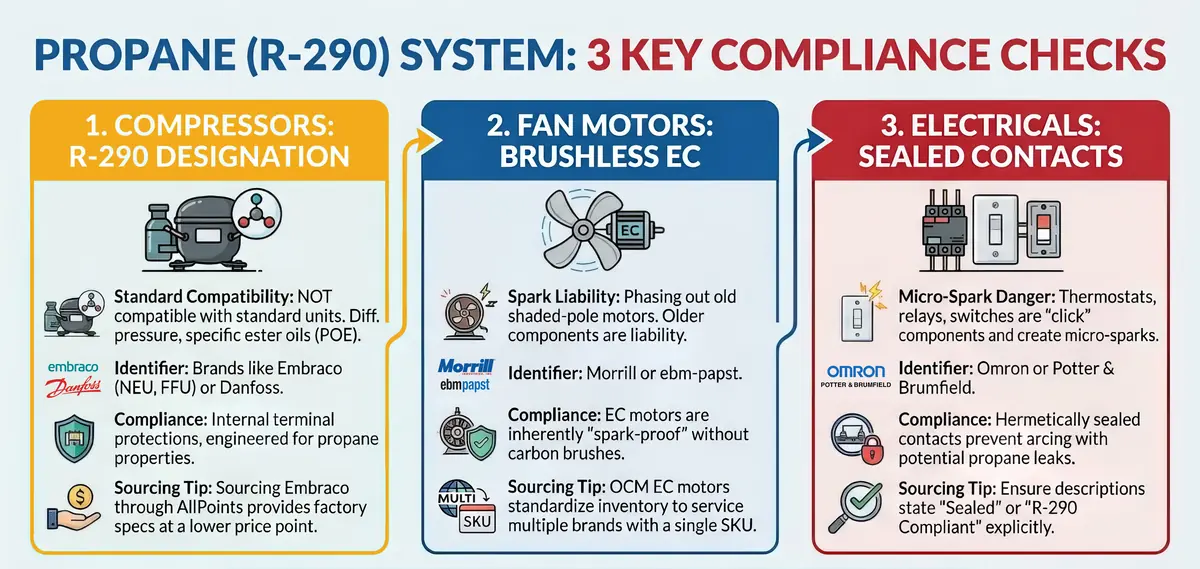

1. Compressors: Look for the R-290 Designation

Standard R-134a or R-404A compressors are not compatible with propane. R-290 has different pressure characteristics and requires specific ester oils (POE) for lubrication.

• The Identifier: Look for brands like Embraco (NEU or FFU series) or Danfoss. These manufacturers supply the factory-installed units for the major OEM brands.
• Compliance Check: Ensure the compressor is explicitly rated for R-290. These units feature internal terminal protections and are engineered to handle the specific thermodynamic properties of propane.
• Sourcing Tip: Sourcing the Embraco unit directly through the AllPoints supply network provides the exact same factory specs as the OEM-branded box at a lower price point.

2. Fan Motors: The Move to Brushless EC

In an R-290 system, a sparking motor is a liability. Older shaded-pole motors with open internal components are being phased out in favor of Electronically Commutated (EC) motors.

• The Identifier: Look for motors from Morrill or ebm-papst.
• The Compliance Check: EC motors are inherently "spark-proof" because they lack the carbon brushes that cause internal arcing.
• Sourcing Tip: These motors are often universal in fit but specific in safety. Standardizing your inventory on OCM EC motors allows your techs to service multiple R-290 brands (True, Beverage-Air, Turbo Air) with a single SKU.

3. Electricals: Hermetically Sealed Contacts

The most dangerous components in an R-290 system are the "click" components like thermostats, start relays, and pressure switches. Every time these contacts open or close, they create a micro-spark.

• The Identifier: Look for sealed-contact relays and thermostats (brands like Omron or Potter & Brumfield).
• The Compliance Check: In a compliant R-290 circuit, these components must be hermetically sealed to prevent any leaking refrigerant from coming into contact with the electrical arc.
• Sourcing Tip: If the part description doesn’t explicitly state "Sealed" or "R-290 Compliant," don't buy it for a propane system.

The Procurement Strategy: OCM vs. OEM

When a piece of R-290 equipment goes down, the knee-jerk reaction for many shops is to pay the premium for the OEM-branded part to ensure compliance. However, the "compliance" lives in the component itself, not the logo on the box.

By sourcing OCM parts (the components made by the same factories that supply the OEMs), you are getting the exact engineering required by UL 60335-2-89 without the branded markup.

Verify on the fly:

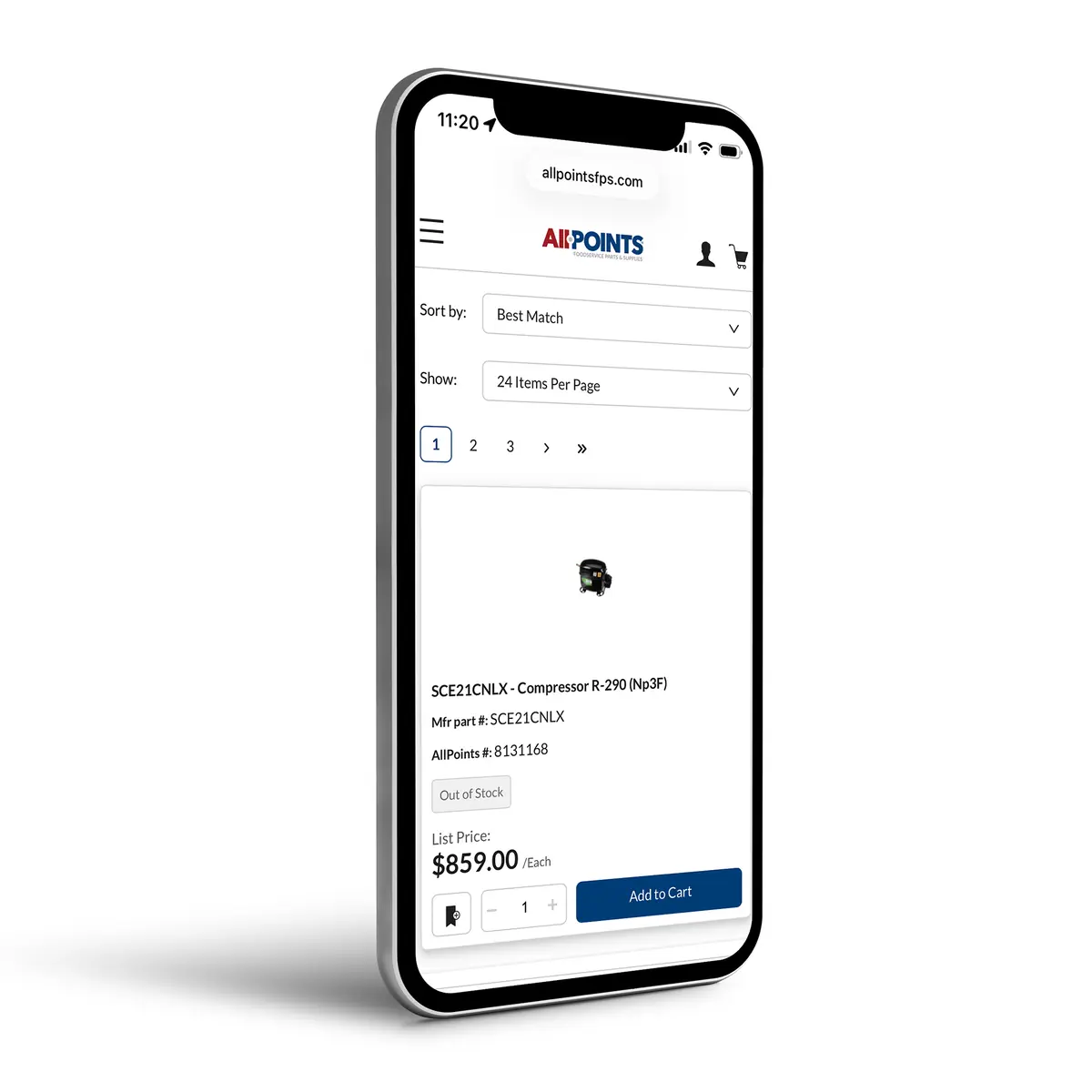

If you are unsure if a specific OCM component is a direct match for your R-290 unit, use the mobile-optimized search at AllPointsFPS.com. You can cross-reference the OEM part number and instantly see the OCM equivalent, along with technical specs confirming its refrigerant compatibility.
