Commercial Dishwasher Won’t Drain? Troubleshooting Guide

Reading Time: 5 Minutes

There are few service calls messier than a commercial dishwasher that refuses to drain.

When a dish machine backs up, the entire kitchen grinds to a halt. Dirty water spills onto the floor, bus tubs start piling up, and the kitchen staff is scrambling to keep service moving. As the responding technician, your job is to find the blockage or mechanical failure without getting drenched in the process.

Whether you are working on a high-temperature door-type machine, an under-counter unit, or a massive conveyor system, draining issues usually boil down to three culprits: physical blockages, valve failures, or pump issues.

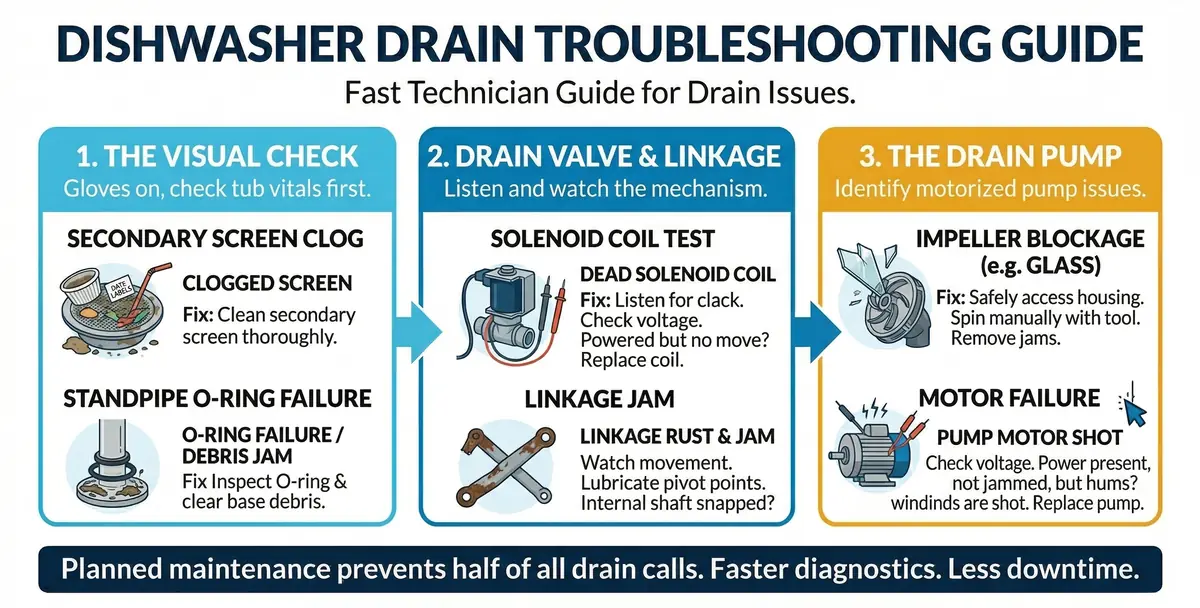

Here is a step-by-step diagnostic guide to get the water flowing again.

Step 1: The Visual Check

Half of all dishwasher drain calls are caused by user error or lack of daily maintenance. Before you start pulling panels and testing voltage, put on your gloves and check the vitals inside the tub.

• The Scrap Accumulator / Drain Screen:
  • The Issue: Kitchen staff are notorious for bypassing the pre-rinse sink. Ramekins, cocktail straws, toothpicks, and dissolving date labels bypass the main basket and clog the secondary screen.
  • The Fix: Pull the screens and thoroughly clean them. A completely matted screen creates a vacuum lock that prevents gravity drains from functioning.
• The Standpipe / Overflow Tube:
  • The Issue: On machines that use a manual standpipe to hold water, the O-ring at the base of the pipe degrades over time. Conversely, if the pipe isn't seated perfectly, water won't hold. But if debris gets jammed around the base, it won't drain when the pipe is pulled.
  • The Fix: Inspect the base of the standpipe and the seating ring. Clear any debris preventing the water from escaping.

Step 2: The Drain Valve and Linkage

If the tub is clear but the water won't drop when the switch is flipped, you need to look at the drain mechanism. Many door-type machines (like Hobart or Jackson) use an electromechanical drain valve.

• The Solenoid / Actuator:
  • The Test: When the machine is set to drain, listen for the distinct "clack" of the drain solenoid engaging. If you hear nothing, check for voltage at the coil.
  • The Fix: If you have voltage but no movement, the coil is dead (open) and must be replaced. If there is no voltage, trace the wiring back to the control board or timer.
• The Mechanical Linkage:
  • The Test: If the solenoid fires, watch the physical linkage attached to the drain ball or stopper.
  • The Fix: These linkages frequently bend, rust, or get jammed by calcification. Lubricate the pivot points. If the linkage moves but the valve doesn't open, the internal shaft or stopper has snapped.

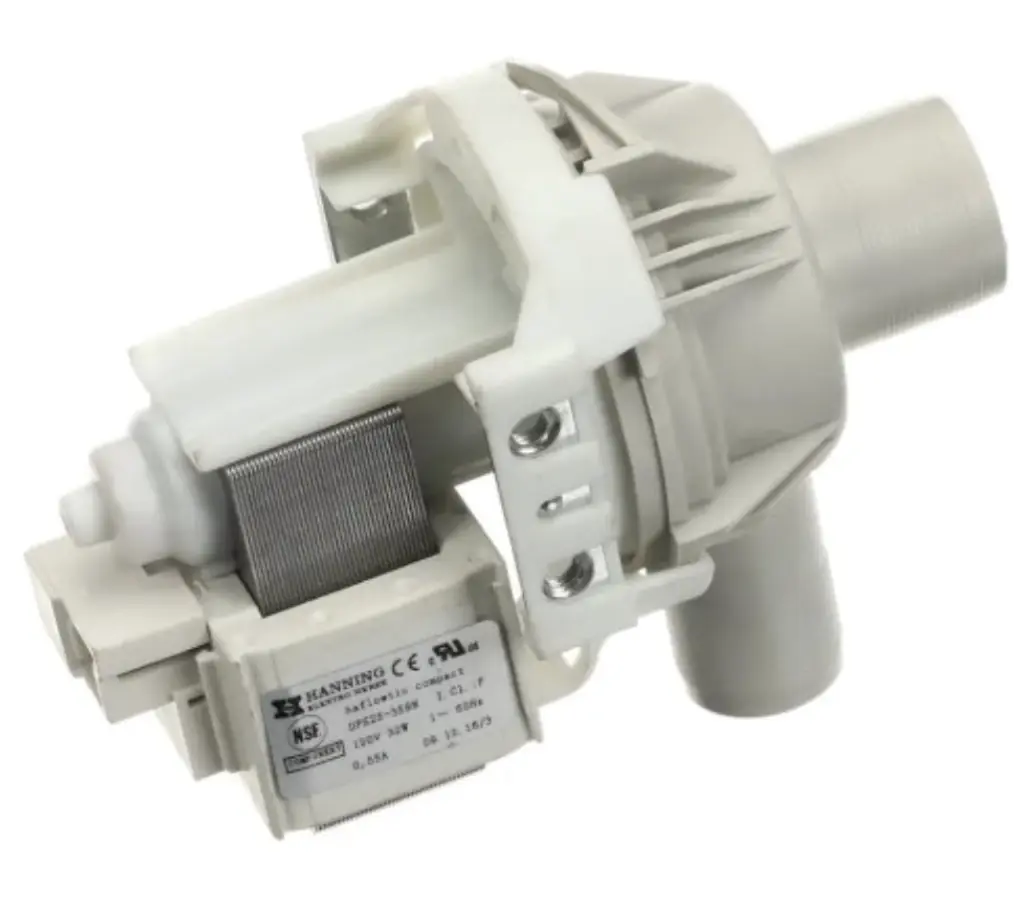

Step 3: The Drain Pump

Gravity is great, but many under-counter machines are installed below the plumbing drain line and rely on a motorized drain pump to push the wastewater out.

• The Impeller Blockage:
  • The Issue: Broken glass is the mortal enemy of a drain pump. A single shard of a shattered pint glass can slide past the filter and lock the plastic impeller tight.
  • The Test: Safely access the pump housing. Try to spin the impeller manually (with a tool, not your fingers). If it's locked, clear the housing.
• The Motor Failure:
  • The Test: Verify voltage is reaching the pump during the drain cycle. If it has power, isn't jammed, but just hums (or does nothing), the motor windings are shot.

Find Parts Fast

If the diagnosis points to a failed solenoid, cracked pump housing, or worn standpipe O-ring, the next challenge is finding the replacement quickly.

• The Match: OCM drain valves and pumps are sourced from the exact same factories that supply the equipment manufacturers. They feature the same voltage ratings, thread patterns, and flow rates.
• The Advantage: You get thousands of in-stock parts available at a lower price point, allowing you to fix the machine immediately while protecting your service margins.

Don't let a bad valve sink the kitchen.

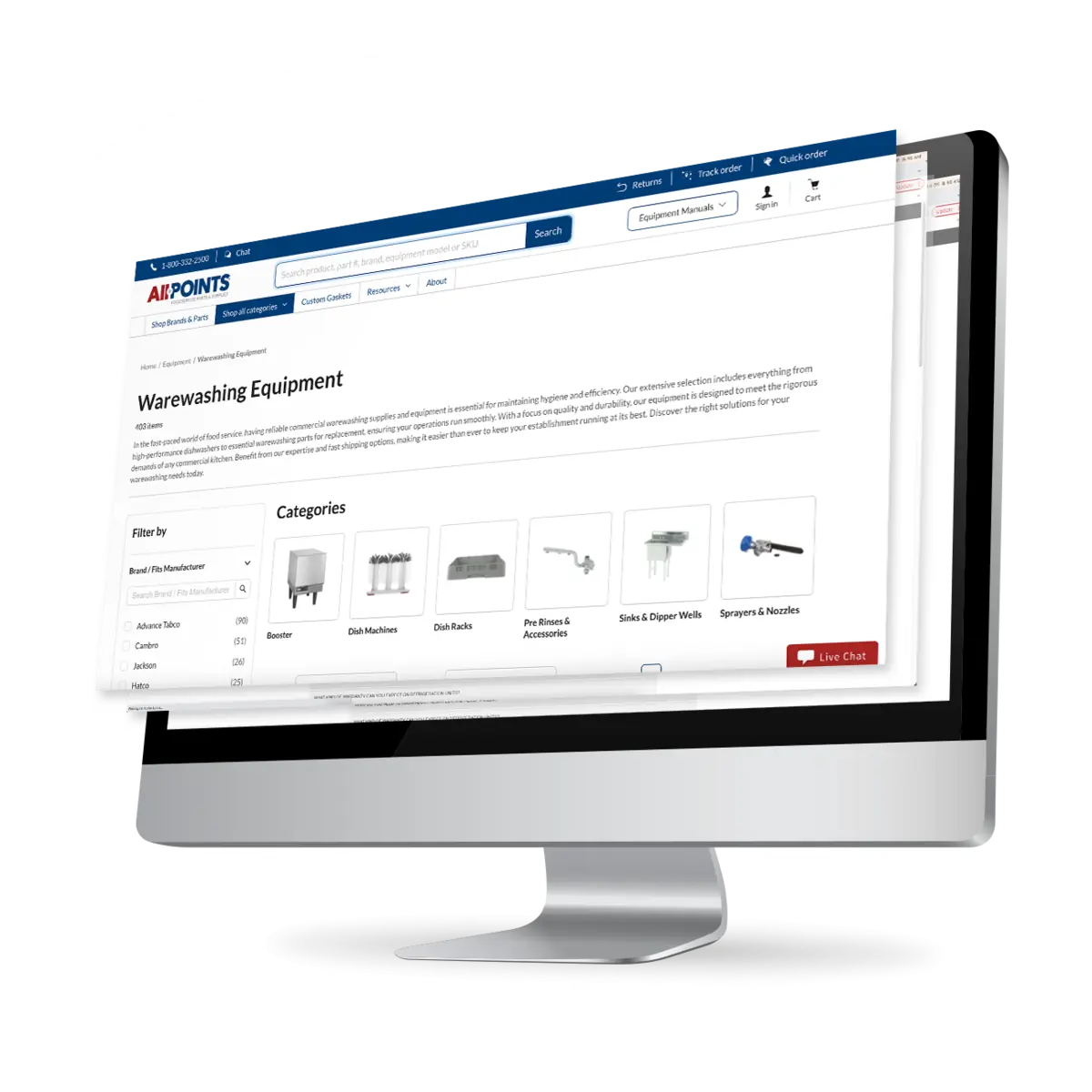

You can look up schematics, cross-reference OEM numbers to OCM equivalents, and place orders directly from the field using the mobile-optimized site at AllPointsFPS.com.
